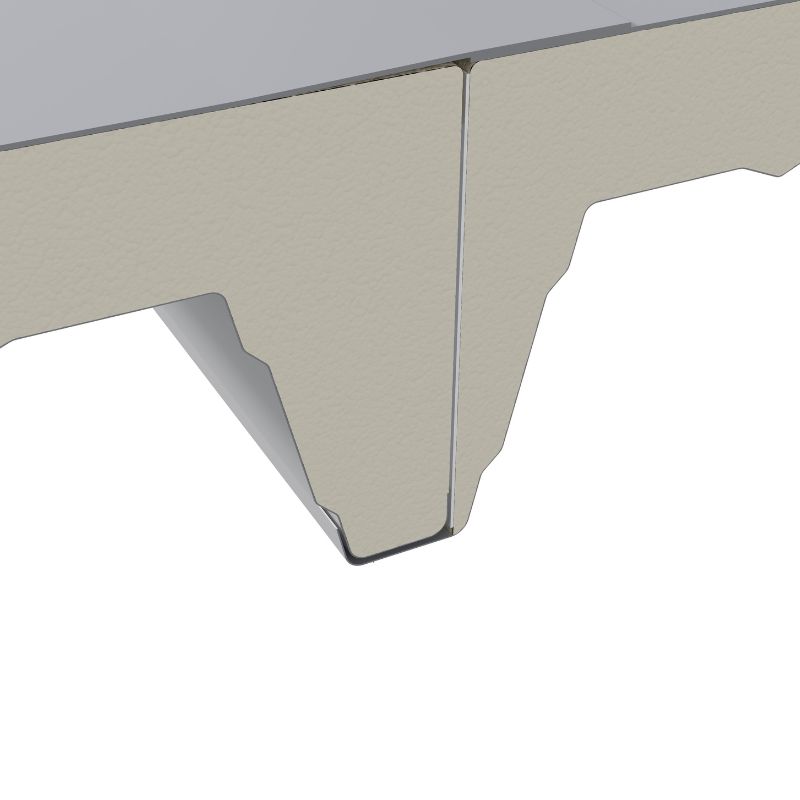

Self-supporting MONO MEGA 106 FLAGON roof panel with polyurethane foam insulation, used for industrial and commercial flat or low slope roofs. The single sheet panel has glued on the flat side a pvc or polyolefin synthetic membrane. In the building site it is necessary make the hot welding between the joint to obtain a waterproofing roof with very well mechanical characteristics and thermal insulations.

The weldings have to be made by specialized people.

4 ribs, ribs’ height 106 mm, ribs’ breath 333 mm

External side: pvc or polyolefin syntethic membran

Ribbed internal side: steel support

Working width: 1.000 mm

Thicknesses (mm): 50-60-80-100-120-150
